Implement a Combinational Logic Design (45 points)

Implement a combinational logic circuit that netages a 4 bit number using 2's complement representation. IGNORE THE CARRY BIT. For full credit, complete each of the steps below. Each step is worth 5 points.

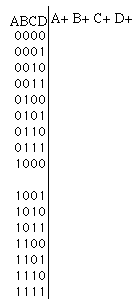

A) complete the given truth table

B) number the given truth table in base 10

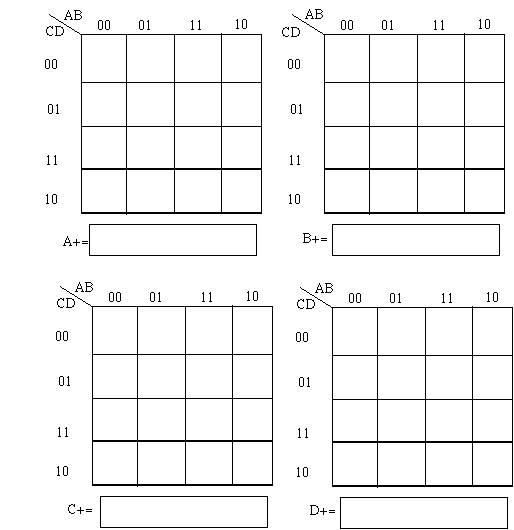

C) number the given k-maps in base 10

D) write the truth table in the k-maps (correct base 10 numbers help here)

E) loop the k-maps (get complete cover with a minimum number of loops)

F) write down the output functions in minimized sum of product form :

G) Draw a network using ONLY AND gates, OR gates and INVERTERS which has
A+ as its output

H) Draw a networks using ONLY NAND gates, which has B+ as its output

I) Using the following decoder, draw the wires you need to implement C+

Short Answer (5 points each) Circle T if the statement is true, otherwise circle F for false.

1. Any Boolean function can be generated using demultiplexors alone. T F

2. A read-only memory (ROM) can be viewed as a programmable AND/OR array in which the AND plane is programmed as a full decoder. T F

Fill in the blank with the correct answer:

3. The canonical SOP form of an expression results in a __________level circuit. Assume that it takes one gate delay to create a literals inverse.

4. If you built a 64:1 multiplexer from 4:1 mux's, how many 4:1 mux's would you need?__________

5. In a carry lookahead adder, the correct equation for the carry input to the second stage (C2) is:

(a) C2=G1+P1C0
(b)C2=G0+P1C1
(c)C2=G1+P1G0+P1P0C1
(d)C2=G1+P1G0+P1P0C0

6. Find the dual and complement of the following expression. (Do not simplify.)

F = [[1 + (a + b')c + d'e']][f' + gh'''(i + j)] + k*0

7 Given that ,
Find the minterm expansion for F.

8. Given the maxterm list
find the canonical product-of-sums expression
